NGC 7380 also known as "Wizard" also known as "Sorcerer"

 Posted: Aug 28th, 2025
Show astrometry on hover
NGC
IC
HD
Technical Info
Telescope/Lens: Прямофокусник 300/996 "Изд.№3"
Camera: Touptek IMX 571 C
Mount: МТ-120
Guide Scope: ED kenko 60 -400mm
Guide Camera: T7m
Software: NINA, Pixlnsight, ФШ
Accessories: GPU 1.0
Exposure:
6 x 300" ISO/Gain: 152 - Optolong L-Ultimate
Orange zoneLight Pollution:
 Ekaterinburg Rayon Ozera Gluhoe, Russia
 Aug 26th, 2025
30 m
872
First frames with my new telescope "Ed. No.3", why 3?
This is my third homemade real telescope, the first two were a Refractor 152/900 based on a TS152/900 objective and an Apo triplet 115/7 also based on a non-liquidated TS115/7 objective refined by Fidel in the basement to a Strehl of 0.99 in red and 0.92 in green, with which I took many remarkable photographs.
Since it's the first light, the device still needs refinement, the stars across the field are not very round, although terminators solve this problem perfectly, and a dew shield needs to be made for the front and before the corrector.
The mirror for this telescope was made by Igor Gribko, huge thanks to him.

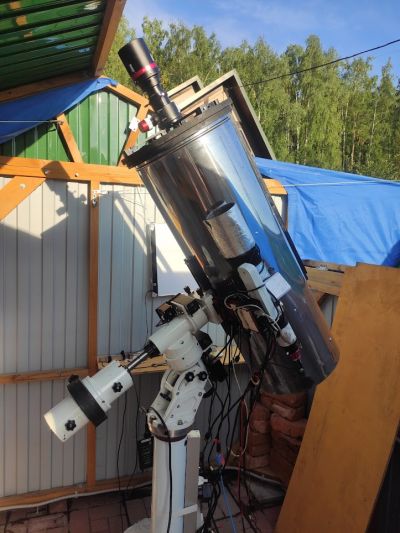

A bit about the tube:
Mirror by Igor Gribko, tube made of 0.5 mm stainless steel, reinforced with rings made of 18mm bakelite plywood inside, mirror cell is aluminum and also plywood. The front end is in the Lanikea style by Oleg Chekalin.
The weight turned out to be 15.5 kg without the camera and corrector.
A photo is available in my profile.
Resolution: 6216x4152 px
Scale: 3537 KB
Add comment

Comments

Where can I find more details about the telescope itself?
28 Aug, 2025 Reply
Oleg Novoselov Replied to Urmasx
Here's the essay I wrote..
https://astronomy.ru/forum/index.php/topic,2087.msg6382399.html#msg6382399
4 Sep, 2025 Reply
Not anywhere yet, but I'll definitely write about it gradually in the Homemade Telescopes section on the astroforum.
28 Aug, 2025 Reply
Oleg Novoselov Replied to Oleg Novoselov
Here's a bit I wrote about the photo: https://deepskyhosting.com/JXVqGqT
28 Aug, 2025 Reply
Ryjov Aleksey Replied to Oleg Novoselov
The aperture is impressive, with 30 minutes of exposure on such an object yielding excellent results!
28 Aug, 2025 Reply
